 CDI5-6600K: €294.91
Listino Pubblico LUGLIO N. 2 del 11.07.2017
|
|

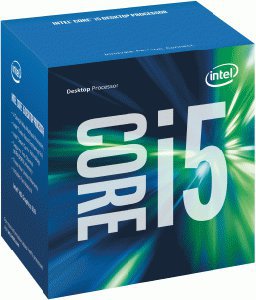

Intel Core i5-6600K
Processor Number : i5-6600K
Intel® Smart Cache : 6 MB
DMI3 : 8 GT/s
Instruction Set : 64-bit
Instruction Set Extensions : SSE4.1/4.2, AVX 2.0
Embedded Options Available : No
Lithography : 14 nm
Scalability : 1S Only
Thermal Solution Specification : PCG 2015D (130W)
Performance
# of Cores : 4
# of Threads : 4
Processor Base Frequency : 3.5 GHz
Max Turbo Frequency : 3.9 GHz
TDP : 91 W
Memory Specifications
Max Memory Size (dependent on memory type) : 64 GB
Memory Types : DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels : 2
Max Memory Bandwidth : 34.1 GB/s
ECC Memory Supported : No
Graphics Specifications
Processor Graphics : Intel® HD Graphics 530
Graphics Base Frequency : 350 MHz
Graphics Max Dynamic Frequency : 1.15 GHz
Graphics Video Max Memory : 1.7 GB
Graphics Output : eDP/DP/HDMI/DVI
4K Support : Yes, at 60Hz
Max Resolution (Intel® WiDi) : 1080p
Max Resolution (HDMI 2.2) : 4096x2160@60Hz
Max Resolution (HDMI 1.4) : 4096x2160@24Hz
Max Resolution (DP) : 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel) : 4096x2304@60Hz
Max Resolution (VGA) : N/A
DirectX* Support : 12
OpenGL* Support : 4.4
Intel® Quick Sync Video : Yes
Intel® InTru™ 3D Technology : Yes
Intel® Insider™ : Yes
Intel® Wireless Display : Yes
Intel® Clear Video HD Technology : Yes
Intel® Clear Video Technology : Yes
of Displays Supported : 3
Device ID : 0x1912
Expansion Options
PCI Express Revision : 3.0
PCI Express Configurations : Up to 1x16, 2x8, 1x8+2x4
Max of PCI Express Lanes : 16
Package Specifications
Max CPU Configuration : 1
Package Size : 37.5mm x 37.5mm
Graphics and IMC Lithography : 14 nm
Sockets Supported : FCLGA1151
Low Halogen Options Available : See MDDS
Advanced Technologies
Intel® Turbo Boost Technology : 2.0
Intel® vPro Technology : No
Intel® Hyper-Threading Technology : No
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes
Intel® TSX-NI : Yes
Intel® 64 : Yes
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Intel® Fast Memory Access : Yes
Intel® Stable Image Platform Program (SIPP) : No
Intel® Small Business Advantage : Yes
Intel® Data Protection Technology
AES New Instructions : Yes
Secure Key : Yes
Intel® Platform Protection Technology
OS Guard : Yes
Trusted Execution Technology : No
Execute Disable Bit : Yes |
|
