 ALIMG750C: €119.90
Listino Pubblico AGOSTO N. 1 del 31.07.2017
|
|

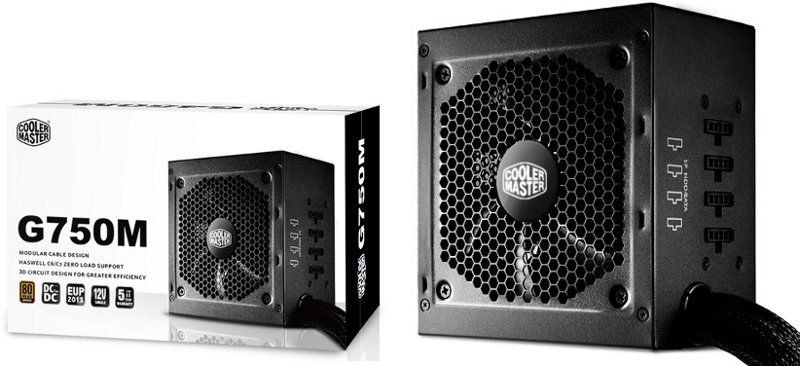

COOLERMASTER G750M RS750-AMAAB1-EU
Unique 3D circuit design offers high efficiency and improves the heat dissipation. It reduces the unnecessary cables which results in much lower crosstalk, signal noise and improves airflow
Powerful Single +12V rail for superior load balancing and VGA compatibility. All series supports VGA up to Nvidia Titan.
Modular cable designs for better cable management
Custom DC-DC module design offers higher efficiency and voltage stability
Haswell C6/C7 support & zero load operation
80 PLUS Bronze certified: up to 88% efficiency @ typical load
Specifiche
Type : Intel Form Factor ATX 12V V2.31
Dimension (W x L x H) : 150 x 140 x 86mm / 5.9 x 5.5 x 3.4 inch
Input Voltage : 100-240Vac (Full Range)
Input Current : 12 - 6A
Input Frequency Range : 60 - 50Hz
PFC : Active PFC (>0.9 typical)
Power Good Signal : 100-500ms
Hold Up Time : >16ms
Efficiency : 85% Typically
MTBF : >100,000 Hours
Protection : OVP/UVP/OPP/OTP/SCP/OCP
Output Capacity : 750W
Operation Temperature : 0~40°C
Regulatory : CE/FCC/UL/TUV/RCM/EAC/BSMI/CCC
Certifications : 80 Plus Bronze
Connector
MB 20+4 Pin x 1
CPU12V 4+4 Pin x 1
PCI-e 6+2 Pin x 4
SATA x 8
4Pin Peripheral x 6
4Pin Floppy x 1 |
|
