 MBASS990FX: €219.90
Listino Pubblico AGOSTO N. 1 del 31.07.2017
|
|

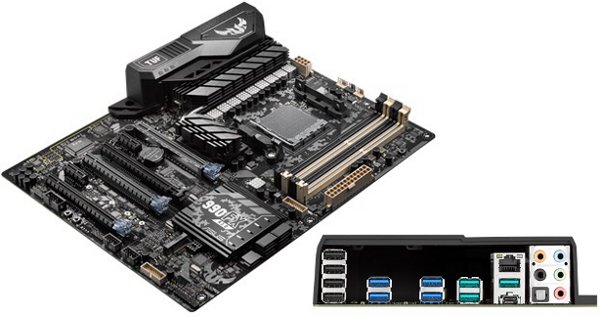

ASUS SABERTOOTH/990FX R3.0
CPU
AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
Supports AM3+ 32 nm CPU
Supports CPU up to 8 cores
Supports CPU up to 220 W
AMD Cool 'n' Quiet™ Technology
Chipset : AMD 990FX/SB950
Memory
4 x DIMM, Max. 32GB, DDR3 1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
System Bus : Up to 5.2 GT/s HyperTransport™ 3.0
Multi-GPU Support
Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots
3 x PCIe 2.0 x16 (dual x16 or x16/x8/x8) *1
1 x PCIe 2.0 x16 (x4 mode, black) *2
2 x PCIe 2.0 x1
Storage
AMD SB950 controller :
5 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10, JBOD
AMD SB950 controller :
1 x M.2 Socket 3, gray, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
LAN : Intel® I211, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
USB Ports
ASMedia® USB 3.1 controller :
1 x USB 3.1/3.0/2.0 port(s) (1 at back panel, , Type-C, Reversible, Support 3A power output)
ASMedia® USB 3.1 controller :
3 x USB 3.1/3.0/2.0 port(s) (3 at back panel, teal blue, Type-A, Support 3A power output)
ASMedia® USB 3.0 Hub :
8 x USB 3.0/2.0 port(s) (4 at back panel, blue, 4 at mid-board)
AMD SB950 controller :
8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
Special Features
TUF ENGINE! Power Design :
- 8 +2 Digital Phase Power Design
- TUF Components (Alloy choke, Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility
Ultimate COOL! Thermal Solution :
- TUF Thermal Radar 2
Safe & Stable! Guardian Angel :
- TUF ESD Guards 2
- TUF LANGuard
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Onboard Button : Power
- Front Panel USB 3.0 Support
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Turbo LAN
Remote Entertainment
- Media Streamer
ASUS EZ DIY :
- Precision Tweaker 2
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
AURA: RGB Lighting Control
Operating System Support
Windows® 10
Windows® 8.1
Windows® 7
Back I/O Ports
1 x LAN (RJ45) port(s)
1 x USB 3.1 Type-C
3 x USB 3.1 (teal blue)Type-A
4 x USB 3.0 (blue)
4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin, beige)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
1 x TPM connector(s)
1 x COM port(s) connector(s)
5 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x System panel(s) (Q-Connector)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x USB BIOS Flashback button(s)
1 x Water Pump header (4-pin)
Accessories
User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x TUF Certification card(s)
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF Inside sticker(s)(white)
BIOS
64 Mb Flash ROM, UEFI BIOS, PnP, SLP2.1, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability : WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Support Disc
Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1: When running dual graphics cards, be sure to insert the card in the first and third PCIex16 slot to get the best performance.
*2: When M.2 bandwidth is set to x4, PCIex16_2 will have no function. |
|
