 MBASP5QPLAM: €49.90
Listino Pubblico LUGLIO N. 2 del 26.07.2012
|
|

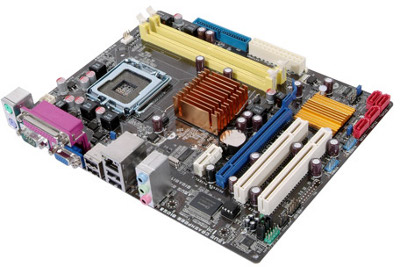

ASUS P5QPL-AM
Specifiche :
CPU
Intel Socket 775 Core™2 Quad/
Pentium® dual-core/Core™2 Extreme/Core™2 Duo/Celeron dual-core /Celeron® Processors Support Intel® 45nm Multi-Core CPU
*Refer to www.asus.com for Intel CPU support list
Chipset G41 /ICH7
Front Side Bus 1333/1066/800 MHz
Memoria 2 x240-pin DIMM, 8 GB, DDR2 1066(O.C.)/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
** Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
*** When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Slot di Espansione
1x PCIe x16 Support PCIe 1.1 Architecture
1x PCIe x1
2x PCI
VGA
Integrated Intel Graphics Media Accelerator (Intel® GMA X4500)
- Supports Microsoft® DirectX 10, OpenGL 2.1
- Supports RGB with max. resolution 2048 x 1536@75Hz
Storage Southbridge
UltraDMA 100 1x
4 xSATA 3 Gb/s ports
LAN
PCIe Gb LAN
Audio
High Definition Audio 6 -Channel CODEC
Supports Jack-detect and Multi-Streaming teconologies
Supports S/PDIF out interface
USB
USB 2.0 ports (4 ports at mid-board, 4 ports at back panel) 8
Caratteristiche di Overclock SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz to 800MHz 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Caratteristiche Speciali Turbo Key
AI NET2 ASUS MyLogo 2
ASUS CrashFree BIOS 3
ASUS Q-Fan
ASUS EZ Flash 2
Porte I/O Pannello Posteriore
x Parallel
1 x D-Sub
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x RJ45 port
1 x USB 2.0/1.1
4 x COM port
1 Channel Audio I/O
6
Connettori I/O Interni
x USB connectors support additional 4 USB 2.0 ports
2 1 x High Definition front panel audio connector
1 x Internal Speaker connector
1 x CD audio-in connector
24-pin EATX power connector
4-pin ATX 12V Power connector
x IDE connector
1 x SATA connectors
4 x S/PDIF Out connector
1 System Panel
BIOS
8 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0, SMBIOS 2.5
Accessori
User's manual
x I/O Shield
1 * Note: The floppy disk drive cable is purchased separately x UltraDMA 133/100/66 cable
1 x SATA cable
1
CD di Supporto
Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS LiveUpdate Utility
Dimensioni
uATX Form Factor
9.6 inch x 7.6 inch 24.4 cm x 19.3 cm ) |
|
